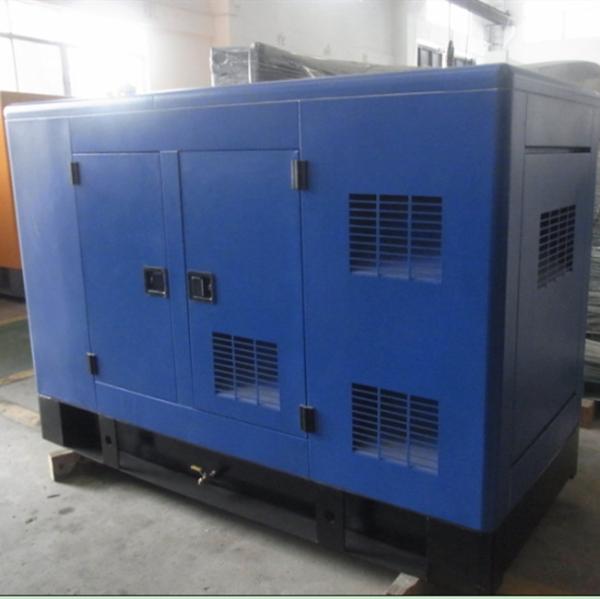

1103a-33tg1 engine 45kva perkins diesel generator set 40kw tanzania closed housing DSE 7320
The uk perkins diesel engine generator has led the field in the design and manufacture of high-performance diesel engines. Its continuous development programme allows Pekins to offer one of the most advanced and comprehensive ranges of purpose-built diesel engines available today.
Ranging from 5 to over 2,600 hp, the engines power more than 5,000 different applications from over 1,000 major equipment manufacturers in the construction, power generation, materials handling, agricultural and general industrial markets.
45kva diesel Generaor set specification
| DIESEL GENERATOR SET | Diesel GenSet Model | GNRP50 |
| Prime power (KW/KVA) | 36/45 |
| Standby power (KW/KVA) | 40/50 |
| Rated voltage(V) | 230/400 |
| Rated current (A) | 64.8 |
| Frequency(Hz) | 50 |
| Rated Rotary Speed (RPM) | 1500 |
| Power factor | 0.8 |
| Power supply mode | 3 phase,4wire |
| Starting method | 24 V DC |
| ENGINE | Diesel Engine | UK imported Engine |
| Model | 1103A-33TG1 |
| Engine prime power (KW/KVA) | 42.2/52.75 |
| Engine standby power(KW/KVA) | 46.5/58.125 |
| Cylinder Qty. | 3 |
| Fuel consumption.(L/ h) | 215 |
| Bore(mm) *Stroke (mm) | 105*127 |
| Compression rate | 14.5:1 |
| Cooling liquid volume (L) | 60 |
| Displacement(L) | 3.3 |
| Lubricant capacity (L) | 6.2(min) |
| Cooling method | Water cooled |
| Intake method | Turbocharged |
| ALTERNATOR | Alternator Features: 1. ENGGA,Stamford, Leroy Somer, Marathon 2. Brushless, 4 poles, rotation magnet 3. IP21-23(NEMA1) enclose is standard for all industrial alternators 4. H class insulation system 5. AVR self-regulated, voltage regulation rate: ≤±1% 6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts 7. Wide range of flange adaptors and single bearing disc coupling 8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528 9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof |
1),Main Specification
a,3-Phase, 50Hz@1500RPM, 400/230V (Also Can Be Made According To Customers’ Special Requirements)
b,Composed Deutz diesel engine and Stamford or Leroy Somer alternator
c,12V/24V DC start motor and storage battery
d,Brushless, Self-excited, IP23, insulation class H alternator
e, 50°C radiator as standard, 60°C is optional
f,Key start panel control system as standard, digital auto-start panel is optional
g,8-hour operation base tank
1) Control system:
a) Automatic alarm system: the unit has the acousto-optics alarm system and
arrestor for any situation as the start defeat, the water is over temperature, the oil
pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
